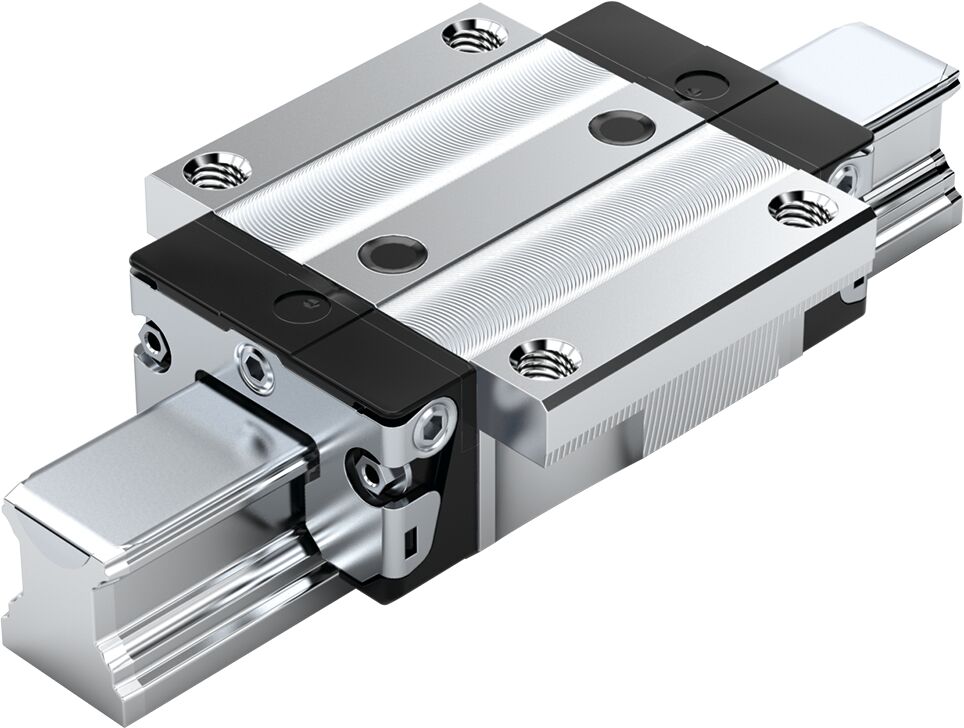

R200189306 BALL RUNNER BLOCK RESIST NRII KWD-020-FNS-C0-H-0
BALL RUNNER BLOCK RESIST NRII KWD-020-FNS-C0-H-0
Overview
The ball runner block made of Resist NRII is corrosion-resistant and highly precise.
Key Specifications
- Size 20
- Format FNS: Width = flange, length = normal, height = standard
- Runner block body and all steel components made of corrosion-resistant steel as per DIN 10088
- Preload class C0: Preload-free
- Accuracy class H: High
- With ball chain
- Without preservation
- Without initial lubrication
- Without attachment element, left (front reference edge)
- Without attachment element, right (front reference edge)
- Straight lube connection loosely attached.
- Runner block body in standard version
- Overall length of the runner block = 75.0 mm
- Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Key Features
- Area of application: For high rigidity requirements
- Long-term lubrication is possible over several years
- Maximum precision
- Ball runner block body and ball guide rail as well as all steel parts made of corrosion resistant steel in accordance with DIN EN 10088
- Patented entry zone increases the travel accuracy up to a factor of six
- Can be used on all SNS ball guide rails
- Available in five common sizes
- Lube fittings with metal threads on all sides
- Excellent dynamic characteristics
- The same high load ratings in all four main directions of loading
- Minimum quantity lubrication system with integrated reservoir for oil lubrication
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Ball chain for low noise level and best travel behavior
Technical Specifications
| Product Type | Ball rail system |
| Nominal Size (mm) | 20 |
| Format / Mounting Style | FNS - flange, normal, standard height |
| Product Model | High-precision ball runner block |
| Material | Corrosion-resistant steel (Resist NR II) |
| Preload Class | C0 - Without preload (clearance) |
| Accuracy Class | H - Highly accurate |
| Seal Type | SS - Standard seal |
| Ball Chain | With ball chain |
| Lubrication | Without lubrication (dry) |
| Self-Alignment | Without self-alignment |
| Runner Block Width (mm) | 63.0 |
| Runner Block Length (mm) | 75.0 |
| Runner Block Height (mm) | 25.35 |
| Runner Block Height with Guide Rail (mm) | 30.0 |
| Max Acceleration amax (m/s²) | 500.0 |
| Note: Max Acceleration | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Max Linear Speed vmax (m/s) | 5.0 |
| Permissible Ambient Temperature | 0 °C ... +80 °C |
| Note: Ambient Temperature | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Friction Coefficient μ | 0.002 ... 0.003 |
| Note: Friction Coefficient | Without friction of seal |
| Weight (kg) | 0.45 |
| Dynamic load capacity C50 (N) | 14400.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic load capacity C100 (N) | 11400.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static load capacity C0 (N) | 15000.0 |
| Dynamic torsional moment load capacity Mt50 (Nm) | 240.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 (Nm) | 190.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 (Nm) | 190 |
| Dynamic longitudinal moment load capacity ML50 (Nm) | 130.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 (Nm) | 100.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 (Nm) | 100 |
| Pitch T guide rail (mm) | 60 |
| Dimension A (profiled rail systems) (mm) | 63 |
| Dimension A1 (profiled rail systems) (mm) | 31.5 |
| Dimension A2 (profiled rail systems) (mm) | 20 |
| Dimension A3 (profiled rail systems) (mm) | 21.5 |
| Dimension B (profiled rail systems) (mm) | 75 |
| Dimension B tolerance (profiled rail systems) (mm) | +0.5 |
| Dimension B1 (mm) | 49.6 |
| Dimension E1 (mm) | 53 |
| Dimension E2 (profiled rail systems) (mm) | 40 |
| Dimension E3 (profiled rail systems) (mm) | 35 |
| Dimension E8 (profiled rail systems) (mm) | 32.5 |
| Dimension E9 (profiled rail systems) (mm) | 7.3 |
| Dimension H (mm) | 30.0 |
| Dimension H1 (profiled rail systems) (mm) | 25.35 |
| Dimension H2 with cover strip (profiled rail systems) (mm) | 20.75 |
| Dimension H2 without cover strip (profiled rail systems) (mm) | 20.55 |
| Dimension K1 (profiled rail systems) (mm) | 11.8 |
| Dimension K2 (profiled rail systems) (mm) | 11.8 |
| Dimension K3 (profiled rail systems) (mm) | 3.35 |
| Dimension K4 (profiled rail systems) (mm) | 3.35 |
| Dimension N1 (profiled rail systems) (mm) | 7.7 |
| Dimension N2 (profiled rail systems) (mm) | 5.2 |
| Dimension N6 (profiled rail systems) (mm) | 13.2 |
| Dimension N6 tolerance (profiled rail systems) (mm) | ±0.5 |
| Dimension S1 (profiled rail systems) (mm) | 5.3 |
| Dimension S2 (profiled rail systems) | M6 |
| Dimension S5 (profiled rail system) (mm) | 6 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead (mm) | 5 |
| Dimension T1 min (mm) | 13 |
| Dimension V1 (mm) | 6 |
