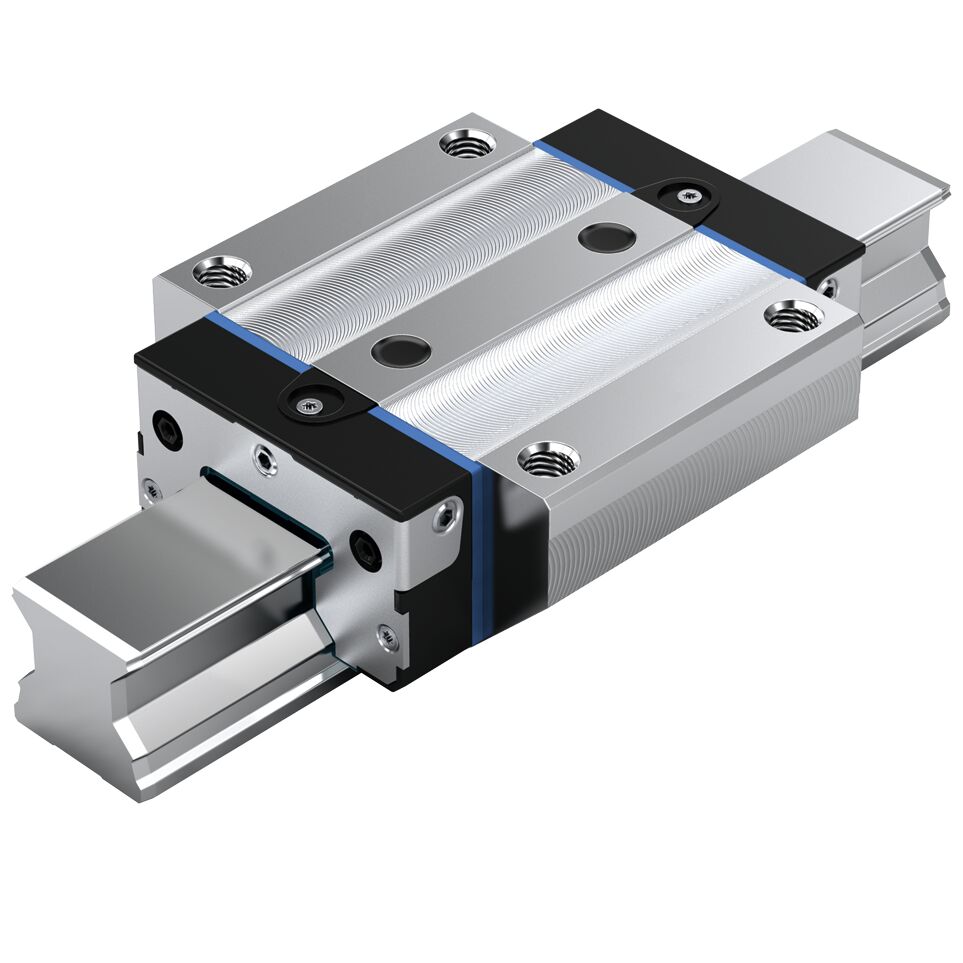

R18514312A ROLLER RUNNER BLOCK CARBON STEEL RWD-045-FNS-C3-S-2-AS
ROLLER RUNNER BLOCK CARBON STEEL RWD-045-FNS-C3-S-2-AS
Overview
The roller runner block is highly precise and characterized by the following product features:
Key Specifications
- Size 45
- Format FNS: Width = flange, length = normal, height = standard
- Runner block body made of unalloyed steel CS
- Preload class C3: High preload
- Accuracy class SP: Super precision
- Without roller chain
- Preserved
- Without initial lubrication
- Without attachment element, left (front reference edge)
- Without attachment element, right (front reference edge)
- Straight lube connection loosely attached.
- Runner block body in standard version
- Overall length of the runner block = 147.5 mm
- Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Key Features
- High torque load capacity
- The same high load ratings in all four main directions of loading
- Maximum rigidity in all load directions due to additional screw connections on two bore holes in the center of the Roller Runner Block
- Unrestricted interchangeability
- All guide rail versions can be combined at will with all roller runner block variants
- Accessories can be screwed down to the front of the Roller Runner Block.
- Lube nipples possible on all sides for easy maintenance
- Minimum lubrication quantities thanks to innovative channel design
- Smooth, quiet running thanks to optimally designed return and guideways of the rollers
- Attachments on the Roller Runner Block can be mounted from above and below
- Lowest elastic deflection and greatest precision in the process due to the multi-optimized entry-zone geometry and high number of rollers
- The roller runner block is simply slid onto the rail with the transport lock.
- Integrated all-around sealing as standard
- Preload classes C1 to C5
- Version with seals DS, SS or AS
Technical Specifications
| Product Type | Roller rail systems |
| Nominal Size (mm) | 45 |
| Format / Mounting Style | FNS - flange, normal, standard height |
| Product Model | High-precision roller runner block |
| Material | Carbon steel |
| Preload Class | C3 - High preload |
| Accuracy Class | SP - Super precise |
| Seal Type | AS - Double-lip seal with reinforced longitudinal seal |
| Lubrication | Preserved |
| Runner Block Width (mm) | 120.0 |
| Runner Block Length (mm) | 147.0 |
| Runner Block Height (mm) | 51.0 |
| Runner Block Height with Guide Rail (mm) | 60.0 |
| Max Acceleration amax (m/s²) | 150.0 |
| Note: Max Acceleration | Requirement: There must be preload, even during operation under load. |
| Max Linear Speed vmax (m/s) | 4.0 |
| Note: Seal | With integrated DS seal |
| Permissible Ambient Temperature | -10 °C ... +80 °C |
| Note: Ambient Temperature | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Friction Coefficient μ | 0.0004 ... 0.001 |
| Note: Friction Coefficient | Without friction of seal |
| Weight (kg) | 3.5 |
| Dynamic load capacity C50 (N) | 131000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic load capacity C100 (N) | 106600.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static load capacity C0 (N) | 209400.0 |
| Dynamic torsional moment load capacity Mt50 (Nm) | 3250.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 (Nm) | 2640.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 (Nm) | 5180 |
| Dynamic longitudinal moment load capacity ML50 (Nm) | 2030.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 (Nm) | 1650.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 (Nm) | 3240 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner block. |
| Pitch T guide rail (mm) | 52.5 |
| Dimension A (profiled rail systems) (mm) | 120 |
| Dimension A1 (profiled rail systems) (mm) | 60 |
| Dimension A2 (profiled rail systems) (mm) | 45 |
| Dimension A3 (profiled rail systems) (mm) | 37.5 |
| Dimension A4 (profiled rail system) (mm) | 55.6 |
| Dimension B (profiled rail systems) (mm) | 147 |
| Dimension B1 (mm) | 101.5 |
| Dimension diameter S5 (profiled rail systems) | 14 |
| Dimension E1 (mm) | 100 |
| Dimension E2 (profiled rail systems) (mm) | 80 |
| Dimension E3 (profiled rail systems) (mm) | 60 |
| Dimension E8 (profiled rail systems) (mm) | 62.9 |
| Dimension E9 (profiled rail systems) (mm) | 16.7 |
| Dimension H (mm) | 60.0 |
| Dimension H1 (profiled rail systems) (mm) | 51 |
| Dimension H2 with cover strip (profiled rail systems) (mm) | 39.1 |
| Dimension H2 without cover strip (profiled rail systems) (mm) | 38.8 |
| Dimension H3 (mm) | 53 |
| Dimension K1 (profiled rail systems) (mm) | 17.45 |
| Dimension K2 (profiled rail systems) (mm) | 20.35 |
| Dimension N1 (profiled rail systems) (mm) | 15 |
| Dimension N2 (profiled rail systems) (mm) | 13.5 |
| Dimension N6 (profiled rail systems) (mm) | 22.4 |
| Dimension N6 tolerance (profiled rail systems) (mm) | ±0.5 |
| Dimension S1 thread diameter (profiled rail systems) (mm) | 10.4 |
| Dimension S2 (profiled rail systems) | M12 |
| Dimension S9 | M4 |
| Dimension S9 thread diameter (profiled rail systems) | M4 |
| Dimension T1 min (mm) | 18 |
| Dimension V1 (mm) | 10 |
| Note of Dimension T | Dimension T = Rail separation of the roller guide rail |
