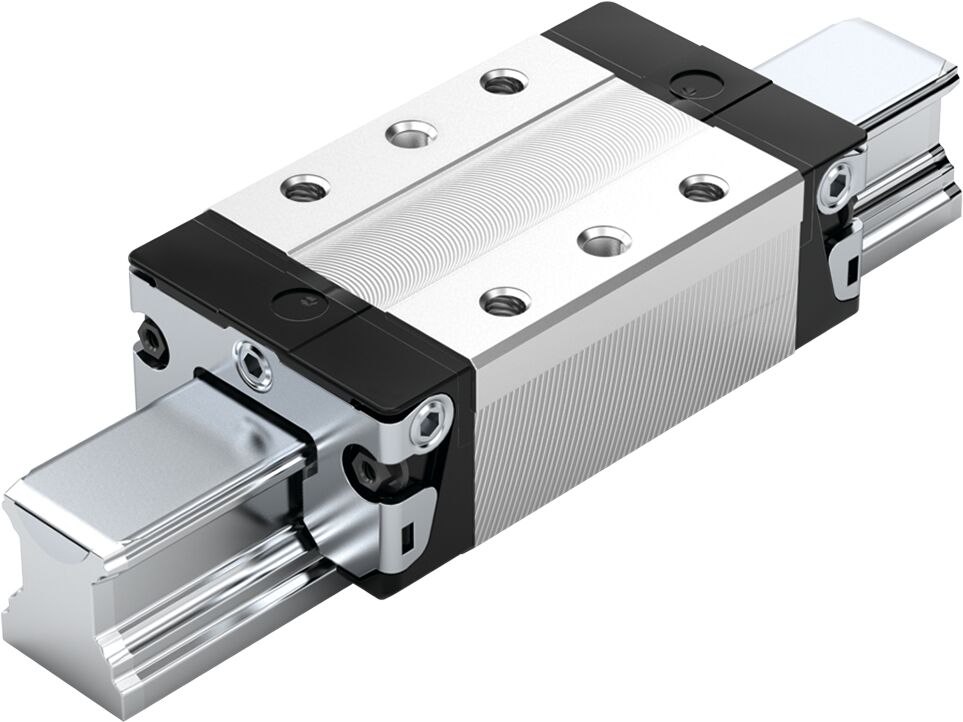

R163279323 BALL RUNNER BLOCK ALUMINUM KWD-030-SNS-C0-H-1
BALL RUNNER BLOCK ALUMINUM KWD-030-SNS-C0-H-1
Overview
The aluminum ball runner block is highly precise and has a reduced weight compared to the steel version.
Key Specifications
- Size 30
- Format SNS: Width = slimline, length = normal, height = standard
- Runner block body made of aluminum
- Preload class C0: Preload-free
- Accuracy class H: High
- With ball chain
- With initial lubrication and preservation
- Roller bearing grease Dynalub 510
- Without attachment element, left (front reference edge)
- Without attachment element, right (front reference edge)
- Straight lube connection loosely attached.
- Runner block body in standard version
- Overall length of the runner block = 97.7 mm
- Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Key Features
- Area of application: For lightweight design – for compensating low tolerances with connected structures
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Extra-compact lightweight design 60% less gravity due to aluminum compared to the ball runner blocks made of steel
- Maximum precision
- Patented entry zone increases the travel accuracy up to a factor of six
- Can be used on all SNS ball guide rails
- Lube connection with metal thread on all sides
- Ball runner block pre-lubricated at the factory
- Attachments on the ball runner block can be mounted from above
- Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
- Excellent dynamic characteristics
- Minimum quantity lubrication with integrated reservoir for oil lubrication
- Predrilled holes on the Ball Runner Block for pinned fitting
- Enables greater parallelism and height offsets of mounting bases
- Quiet, smooth running thanks to optimally designed ball and ball chain return and guideway
- Accuracy classes H and N are combinable with all rails in each accuracy class
- Long-term lubrication is possible over several years
- Ball chain for low noise level and best travel behavior
Technical Specifications
| Product Type | Ball rail system |
| Nominal Size (mm) | 30 |
| Format / Mounting Style | SNS - slimline, normal, standard height |
| Product Model | High-precision ball runner block |
| Material | Aluminum |
| Preload Class | C0 - Without preload (clearance) |
| Accuracy Class | H - Highly accurate |
| Seal Type | LS - Low-friction seal |
| Ball Chain | With ball chain |
| Lubrication | Pre-lubricated, preserved |
| Self-Alignment | Without self-alignment |
| Runner Block Width (mm) | 60.0 |
| Runner Block Length (mm) | 97.7 |
| Runner Block Height (mm) | 35.35 |
| Runner Block Height with Guide Rail (mm) | 42.0 |
| Max Permissible Force Fmax (N) | 12200 |
| Max Acceleration amax (m/s²) | 500.0 |
| Note: Max Acceleration | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Max Linear Speed vmax (m/s) | 5.0 |
| Max Torsional Moment Mt max (Nm) | 210 |
| Max Longitudinal Load Moment ML max (Nm) | 110 |
| Note: Seal | No preferred variants/combinations (partially longer delivery times) |
| Permissible Ambient Temperature | 0 °C ... +80 °C |
| Note: Ambient Temperature | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Friction Coefficient μ | 0.002 ... 0.003 |
| Note: Friction Coefficient | Without friction of seal |
| Weight (kg) | 0.45 |
| Dynamic load capacity C50 (N) | 43800.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic load capacity C100 (N) | 34800.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt50 (Nm) | 760.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 (Nm) | 600.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML50 (Nm) | 530.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 (Nm) | 420.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Pitch T guide rail (mm) | 80 |
| Dimension A (profiled rail systems) (mm) | 60 |
| Dimension A1 (profiled rail systems) (mm) | 30 |
| Dimension A2 (profiled rail systems) (mm) | 28 |
| Dimension A3 (profiled rail systems) (mm) | 16 |
| Dimension B (profiled rail systems) (mm) | 97.7 |
| Dimension B tolerance (profiled rail systems) (mm) | +0.5 |
| Dimension B1 (mm) | 67.4 |
| Dimension E1 (mm) | 40 |
| Dimension E2 (profiled rail systems) (mm) | 40 |
| Dimension E8 (profiled rail systems) (mm) | 48.4 |
| Dimension E9 (profiled rail systems) (mm) | 14.6 |
| Dimension H (mm) | 42.0 |
| Dimension H1 (profiled rail systems) (mm) | 35.35 |
| Dimension H2 with cover strip (profiled rail systems) (mm) | 28.55 |
| Dimension H2 without cover strip (profiled rail systems) (mm) | 28.35 |
| Dimension K1 (profiled rail systems) (mm) | 20 |
| Dimension K2 (profiled rail systems) (mm) | 21.7 |
| Dimension K3 (profiled rail systems) (mm) | 6.05 |
| Dimension K4 (profiled rail systems) (mm) | 6.05 |
| Dimension N3 (profiled rail systems) (mm) | 12 |
| Dimension N6 (profiled rail systems) (mm) | 17 |
| Dimension N6 tolerance (profiled rail systems) (mm) | ±0.5 |
| Dimension S11 (profiled rail systems) (mm) | 7.7 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) (mm) | 9 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead (mm) | 5 |
| Dimension T1 min (mm) | 16 |
| Dimension V1 (mm) | 7 |
