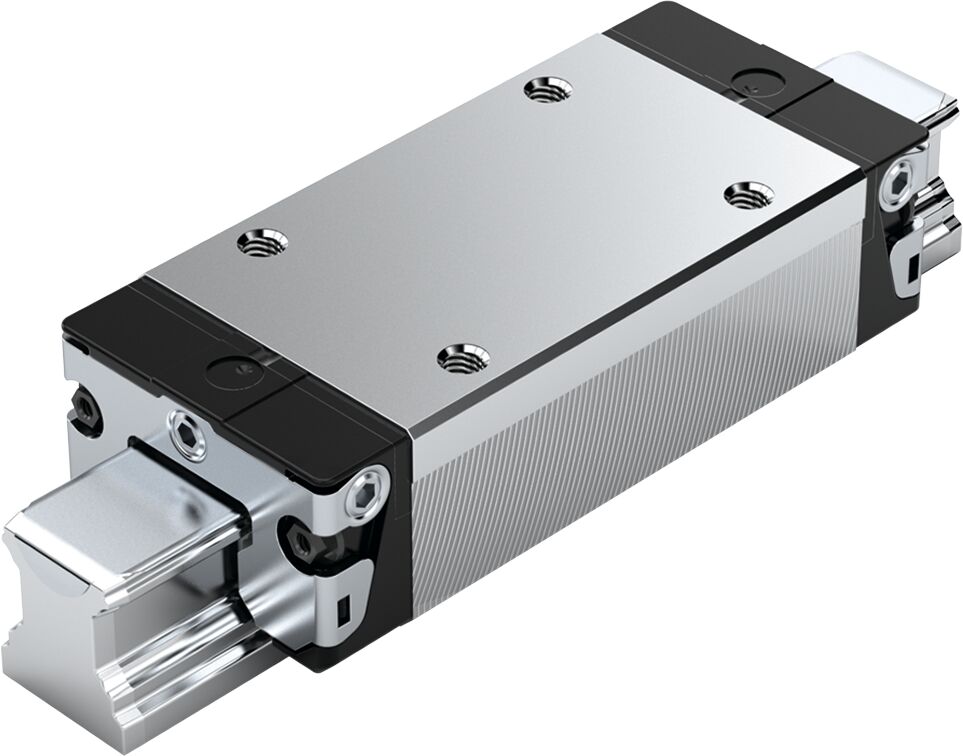

R16238222Y BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C2-P-1
BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C2-P-1
Overview
The ball runner block is highly precise and characterized by the following product features:
Key Specifications
- Size 20
- Format SLS: Width = slimline, length = long, height = standard
- Runner block body made of unalloyed steel CS
- Preload class C2: Medium preload
- Accuracy class P: Precision
- With ball chain
- With initial lubrication and preservation
- Roller bearing grease Dynalub 510
- Without attachment element, left (front reference edge)
- Without attachment element, right (front reference edge)
- Straight lube connection loosely attached.
- Runner block body in standard version
- Overall length of the runner block = 91.0 mm
- Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Key Features
- Area of application: For restricted space in the transverse direction
- For very high loads
- The same high load ratings in all four main directions of loading
- Long-term lubrication is possible over several years
- Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
- High torque load capacity
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Attachments on the ball runner block can be mounted from above
- Integrated all-round sealing
- Minimum quantity lubrication system with integrated reservoir for oil lubrication
- End-face fastening thread for all attachments
- Can be used on all SNS/SNO ball guide rails
- Excellent dynamic characteristics
- Different preload classes
- Ball chain for low noise level and best travel behavior
Technical Specifications
| Product Type | Ball rail system |
| Nominal Size (mm) | 20 |
| Format / Mounting Style | SLS - slimline, long, standard height |
| Product Model | High-precision ball runner block |
| Material | Carbon steel |
| Preload Class | C2 - Medium preload |
| Accuracy Class | P - Precise |
| Seal Type | DS - Double-lip seal |
| Ball Chain | With ball chain |
| Lubrication | Pre-lubricated, preserved |
| Self-Alignment | Without self-alignment |
| Runner Block Width (mm) | 44.0 |
| Runner Block Length (mm) | 91.0 |
| Runner Block Height (mm) | 25.35 |
| Runner Block Height with Guide Rail (mm) | 30.0 |
| Max Acceleration amax (m/s²) | 500.0 |
| Note: Max Acceleration | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Max Linear Speed vmax (m/s) | 5.0 |
| Note: Seal | No preferred variants/combinations (partially longer delivery times) |
| Permissible Ambient Temperature | 0 °C ... +80 °C |
| Note: Ambient Temperature | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction Coefficient μ | 0.002 ... 0.003 |
| Note: Friction Coefficient | Without friction of seal |
| Weight (kg) | 0.45 |
| Dynamic load capacity C50 (N) | 35500.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic load capacity C100 (N) | 28200.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static load capacity C0 (N) | 38800.0 |
| Dynamic torsional moment load capacity Mt50 (Nm) | 450.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 (Nm) | 360.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 (Nm) | 500 |
| Dynamic longitudinal moment load capacity ML50 (Nm) | 420.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 (Nm) | 330.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 (Nm) | 460 |
| Pitch T guide rail (mm) | 60 |
| Dimension A (profiled rail systems) (mm) | 44 |
| Dimension A1 (profiled rail systems) (mm) | 22 |
| Dimension A2 (profiled rail systems) (mm) | 20 |
| Dimension A3 (profiled rail systems) (mm) | 12 |
| Dimension B (profiled rail systems) (mm) | 91 |
| Dimension B tolerance (profiled rail systems) (mm) | +0.5 |
| Dimension B1 (mm) | 65.6 |
| Dimension E1 (mm) | 32 |
| Dimension E2 (profiled rail systems) (mm) | 50 |
| Dimension E8 (profiled rail systems) (mm) | 32.5 |
| Dimension E9 (profiled rail systems) (mm) | 7.3 |
| Dimension H (mm) | 30.0 |
| Dimension H1 (profiled rail systems) (mm) | 25.35 |
| Dimension H2 with cover strip (profiled rail systems) (mm) | 20.75 |
| Dimension H2 without cover strip (profiled rail systems) (mm) | 20.55 |
| Dimension K1 (profiled rail systems) (mm) | 14.8 |
| Dimension K2 (profiled rail systems) (mm) | 14.8 |
| Dimension K3 (profiled rail systems) (mm) | 3.35 |
| Dimension K4 (profiled rail systems) (mm) | 3.35 |
| Dimension N3 (profiled rail systems) (mm) | 7.5 |
| Dimension N6 (profiled rail systems) (mm) | 13.2 |
| Dimension N6 tolerance (profiled rail systems) (mm) | ±0.5 |
| Dimension S2 (profiled rail systems) | M5 |
| Dimension S5 (profiled rail system) (mm) | 6 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead (mm) | 5 |
| Dimension T1 min (mm) | 13 |
| Dimension V1 (mm) | 6 |
