R161924051 BRAKING ELEMENT UBPS 2505 AS1A &
BRAKING ELEMENT UBPS 2505 AS1A &
Overview

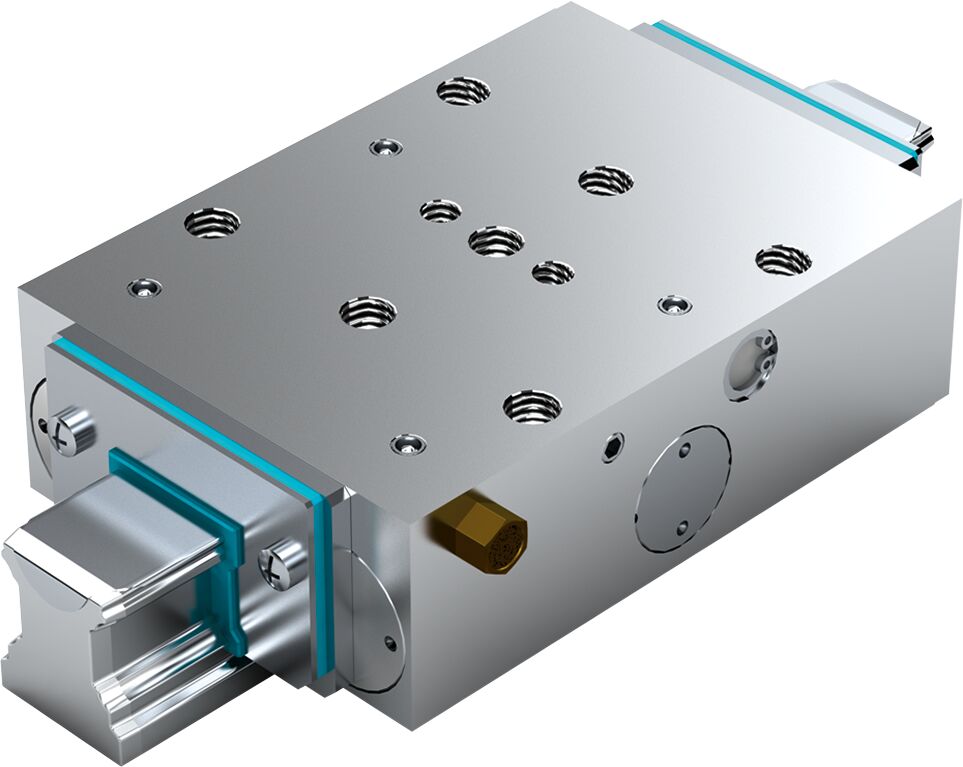

Pneumatic braking unit UBPS*), FLS for ball rail systems
Key Specifications
- Size = 25
- Can be used on all SNS ball guide rails
- *)Zimmer GmbH
Key Features
- Clamps and brakes with spring energy accumulator
- Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
- Dynamic and static stabilization in the axial direction
- Clamps and brakes without pressurization (spring energy)
- Compact design, compatible with DIN 645
- Up to 1 million clamping cycles
- Up to 2,000 emergency braking operations
- Integrated all-round sealing
- High continuous output
- High positioning accuracy
- Mechanical gate valve gear mechanism
- Solid, rigid steel housing, chemically nickel-plated
- Extremely low air consumption
- Maintenance-free
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- Can be used on all SNS ball guide rails
- Very high axial holding forces of up to 7700 N at 5.5 bar release pressure with high-power spring energy accumulator
- Increased holding force of up to 9,200 N thanks to additional pressurization on the air-plus port
Technical Specifications
| Accessories for | Runner Block |
| Nominal Size (mm) | 25 |
| Note: spring energy holding force with standard air port | Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Permissible Ambient Temperature | 0 °C ... +70 °C |
| Weight (kg) | 1.1 |
| Footnote for spring energy holding force with air-plus port | Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve. |
| Air consumption (normal liter) standard air port [dm³/stroke] | 0.08 |
| Dimension A (profiled rail systems) (mm) | 70 |
| Dimension B1 (mm) | 99 |
| Dimension E1 (mm) | 57 |
| Dimension E2 (profiled rail systems) (mm) | 45 |
| Dimension E3 (profiled rail systems) (mm) | 20 |
| Dimension E6 (mm) | 20 |
| Dimension F1 (mm) | 6.5 |
| Dimension F2 (mm) | 11 |
| Dimension H (mm) | 36.0 |
| Dimension H1 (profiled rail systems) (mm) | 31 |
| Dimension N3 (profiled rail systems) (mm) | 7 |
| Dimension N4 (profiled rail systems) (mm) | 7 |
| Dimension S2 thread diameter (profiled rail systems) (mm) | M8 |
| Dimension S3 thread diameter (profiled rail systems) | M6 |
| Dimension X (profiled rail systems) (mm) | 5.5 |
| Footnote Dimension H1 | Ball runner block .H. (...High...) Spacer plate necessary. Available on request. |
