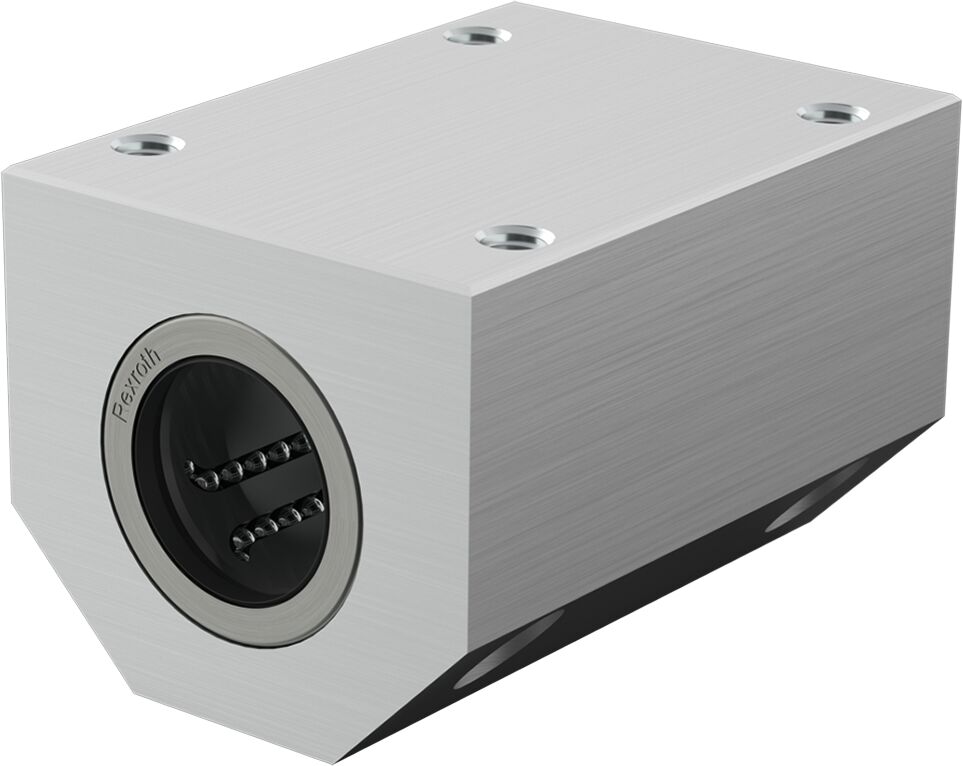

R102925044 LINEAR-SET LSACT-50-DD-G
LINEAR-SET LSACT-50-DD-G
Overview
Linear set (aluminum)
Key Specifications
- With compact LB, tandem, closed
- Shaft diameter d = 50
- With two seals
- Version: Standard
- Greased
Key Features
- Lightweight precision housing (aluminum)
- Two compact linear bushings
- Integrated wiper seals
- Normal radial clearance
- Initial lubrication with Dynalub 510
Technical Specifications
| Shaft diameter d (mm) | 50.0 |
| Product Type | Normal |
| Format of linear bushings | – Closed |
| Series | Compact |
| Type | Linear set |
| Dynamic load capacity C (N) | 11660.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Max Acceleration amax (m/s²) | 150.0 |
| Max Linear Speed vmax (m/s) | 5.0 |
| Outer diameter D (mm) | 62.0 |
| Permissible Ambient Temperature | -10 °C ... +80 °C |
| Weight (kg) | 2.45 |
| Static load capacity C0 (N) | 10700.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Static longitudinal moment load capacity ML0 (Nm) | 271 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force (N) | 10 |
| Dimension A (profiled rail systems) (mm) | 103 |
| Dimension D (mm) | 62 |
| Dimension E1 (mm) | 82 |
| Dimension E2 (mm) | 100 |
| Dimension H (mm) | 47.0 |
| Dimension H1 (profiled rail systems) (mm) | 92 |
| Dimension H4 (mm) | 30 |
| Dimension L (mm) | 145 |
| Dimension N1 (profiled rail systems) (mm) | 46 |
| Dimension N2 (profiled rail systems) (mm) | 26 |
| Dimension S (mm) | 10.5 |
