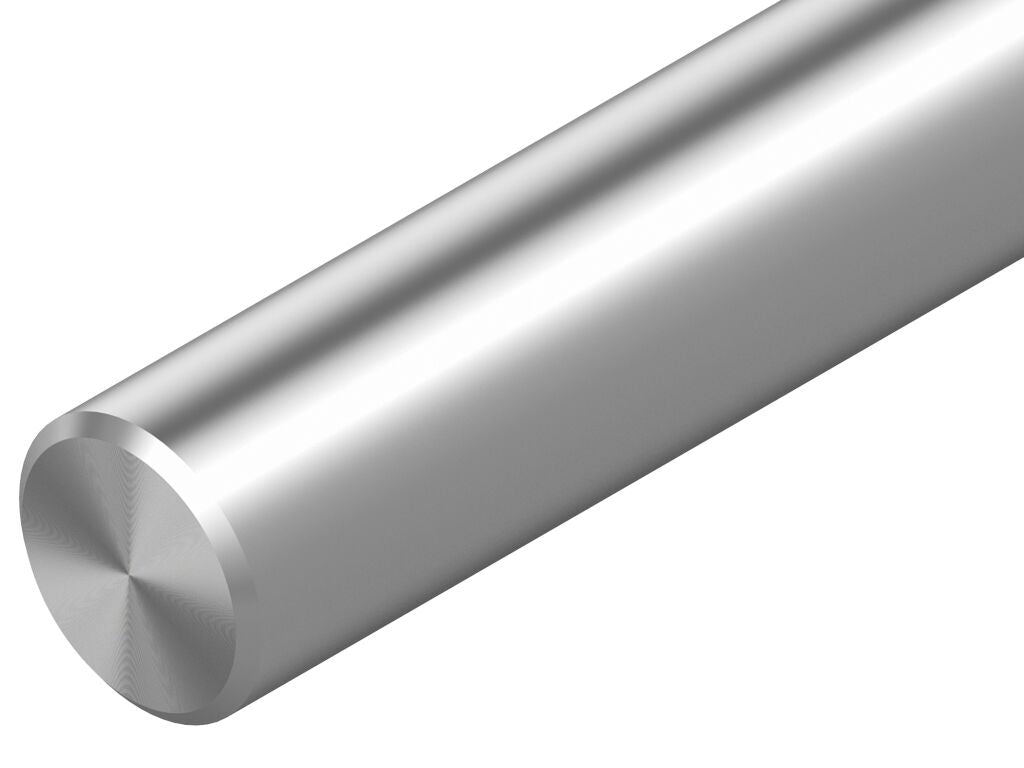

R100003200 SOLID SHAFT WV-32H6
SOLID SHAFT WV-32H6
Overview
Solid shaft
Key Specifications
- made of heat-treated steel
- Shaft diameter d = 32
- Tolerance = H6
Key Features
- For particularly high demands with a very long service life under rolling loads.
Technical Specifications
| Shaft diameter d (mm) | 32.0 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Tolerance grade shaft | h6 |
| Version of precision steel shaft | Solid shaft |
| Note: tolerance grade | Other tolerances upon request |
| Type | Precision steel shaft |
| Note: Lmax | Sections are combined for longer overall lengths. Linear bushings can simply be rolled over joints. |
| Mass m (kg/m) [kg/m] | 6.27 |
| Weight (kg) | 0 |
| Hardness [HRC] | min. 60 |
| Straightness tolerance t3 footnote | The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012. |
| Footnote length L | Regarding geometry and hardness |
| Cylindricity tolerance t2 footnote | Measurement of differences in diameter |
