R074154000 FLANGE LINEAR BUSHING KBMFT-40-DD

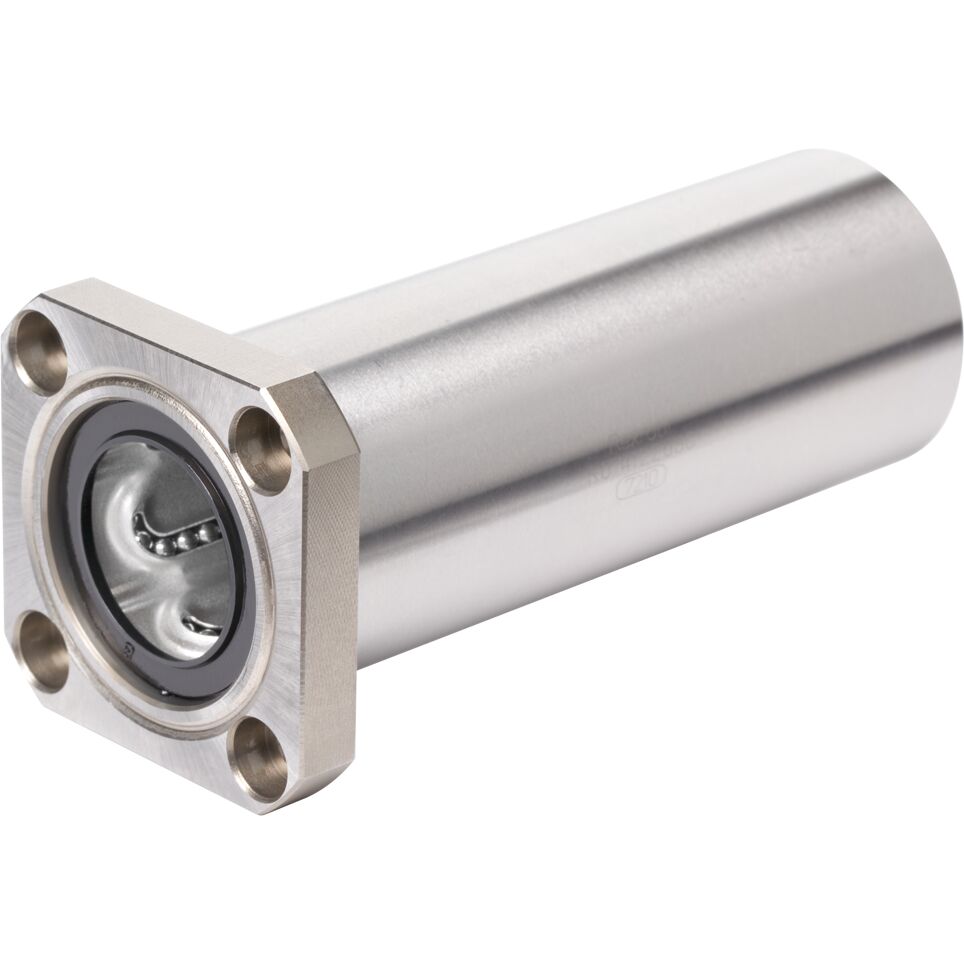

FLANGE LINEAR BUSHING KBMFT-40-DD
Overview
Flange linear bushing
Key Specifications
- Standard (metal)
- Flanged, tandem
- Shaft diameter d = 40
- With two seals
- Version: Standard
Key Features
- Rugged all-metal design for harsh environments and heavy contamination
- Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life
- For use in woodworking, foundries, cement plants
- Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.
- Integrated wiper seals
- Hardened and ground outer sleeve
- POM ball retainer
- Balls made of rolling bearing steel
Technical Specifications
| Shaft diameter d (mm) | 40.0 |
| Product Type | Normal |
| Format of linear bushings | FT - Flanged, tandem |
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal Type | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Maximum dynamic load capacity Cmax (N) | 3000.0 |
| Max Acceleration amax (m/s²) | 100.0 |
| Max Linear Speed vmax (m/s) | 2.5 |
| Length of linear bushing (mm) | 151.0 |
| Outer diameter D (mm) | 62.0 |
| Permissible Ambient Temperature | -10 °C ... +80 °C |
| Note: Ambient Temperature | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Weight (kg) | 1.65 |
| Static longitudinal moment load capacity ML0 (Nm) | 165 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force (N) | 24 |
| Dimension B (profiled rail systems) (mm) | 75 |
| Dimension D (mm) | 62 |
| Dimension D1 (mm) | 98 |
| Dimension D2 (mm) | 80 |
| Dimension L (mm) | 151 |
| Dimension L tolerance (mm) | ±0.3 |
| Dimension L1 (mm) | 13 |
| Dimension S (mm) | 9 |
| Dimension V (mm) | 8.1 |
