R067122540 SUPER LINEAR BUSHING KBA-O-25-DD

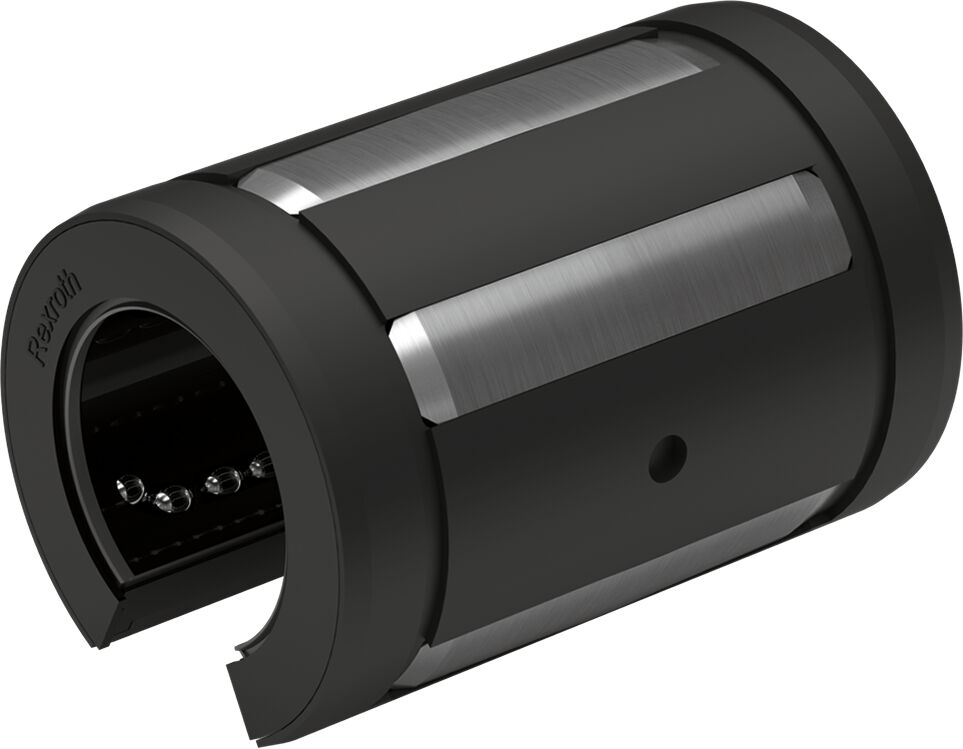

SUPER LINEAR BUSHING KBA-O-25-DD
Overview
Super linear bushing
Key Specifications
- Super A (with self-alignment feature)
- Open
- Shaft diameter d = 25
- With two seals
Key Features
- Low-cost linear bushing for high requirements
- Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life
- Compensates for shaft deflection and misalignment up to 30'
- Open linear bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures.
- High travel speed (5 m/s)
- With longitudinal seal
- No initial lubrication
- Integrated wiper seals, external seals or no wiper seals
- Ball retainer and outer sleeve made of PA or POM
- Balls made of rolling bearing steel
Technical Specifications
| Shaft diameter d (mm) | 25.0 |
| Product Type | Normal |
| Format of linear bushings | O - Open |
| Series | Super A (with self-alignment feature) |
| Type | Linear bushing |
| Seal Type | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C (N) | 4130.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Max Acceleration amax (m/s²) | 150.0 |
| Max Linear Speed vmax (m/s) | 3.0 |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| Length of linear bushing (mm) | 58.0 |
| Outer diameter D (mm) | 40.0 |
| Permissible Ambient Temperature | -10 °C ... +80 °C |
| Friction Coefficient μ | 0.001 ... 0.0025 |
| Note: Friction Coefficient | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight (kg) | 0.13 |
| Static load capacity C0 (N) | 2250.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Breakaway force (N) | 4.5 |
| Dimension C h13 (mm) | 58 |
| Dimension C1 H13 (mm) | 43.7 |
| Dimension C2 (mm) | 1.85 |
| Dimension D (mm) | 40 |
| Dimension E (mm) | 11.5 |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Angle α [°] | 57 |
