R060204010 STANDARD LINEAR BUSHING KBM-40-DD

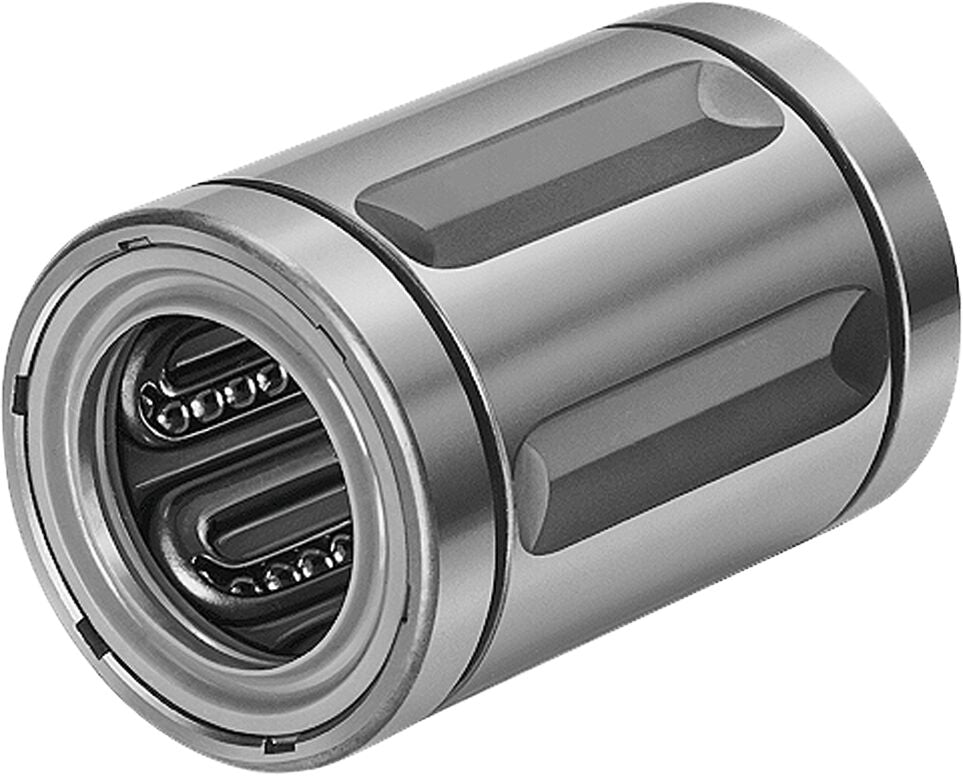

STANDARD LINEAR BUSHING KBM-40-DD
Overview
Standard linear bushing
Key Specifications
- Standard (metal)
- Closed
- Shaft diameter d = 40
- With two seals
- Version: Standard
Key Features
- Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination
- Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life
- Steel ball retainer (shaft diameters 3, 4 and 10 with plastic strip made of POM and shaft diameters 5 and 8 made of PA)
- Closed, for self-supporting shafts
- Balls made of rolling bearing steel
- For use in woodworking, foundries, cement plants
- Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.
- No wiper seals, come with integrated steel retaining rings; higher temperatures allowed with shaft diameters 12 and higher
- Hardened and ground outer sleeve
Technical Specifications
| Shaft diameter d (mm) | 40.0 |
| Product Type | Normal |
| Format of linear bushings | – Closed |
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal Type | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Maximum dynamic load capacity Cmax (N) | 5480.0 |
| Max Acceleration amax (m/s²) | 100.0 |
| Max Linear Speed vmax (m/s) | 2.5 |
| Length of linear bushing (mm) | 80.0 |
| Outer diameter D (mm) | 62.0 |
| Permissible Ambient Temperature | -10 °C ... +80 °C |
| Note: Ambient Temperature | Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity. |
| Friction Coefficient μ | 0.001 ... 0.004 |
| Note: Friction Coefficient | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight (kg) | 0.52 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7. |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Breakaway force (N) | 24 |
| Dimension C h12 (mm) | 80 |
| Dimension C1 H13 (mm) | 60.3 |
| Dimension C2 (mm) | 2.15 |
| Dimension D (mm) | 62 |
| Dimension D1 (mm) | 58 |
